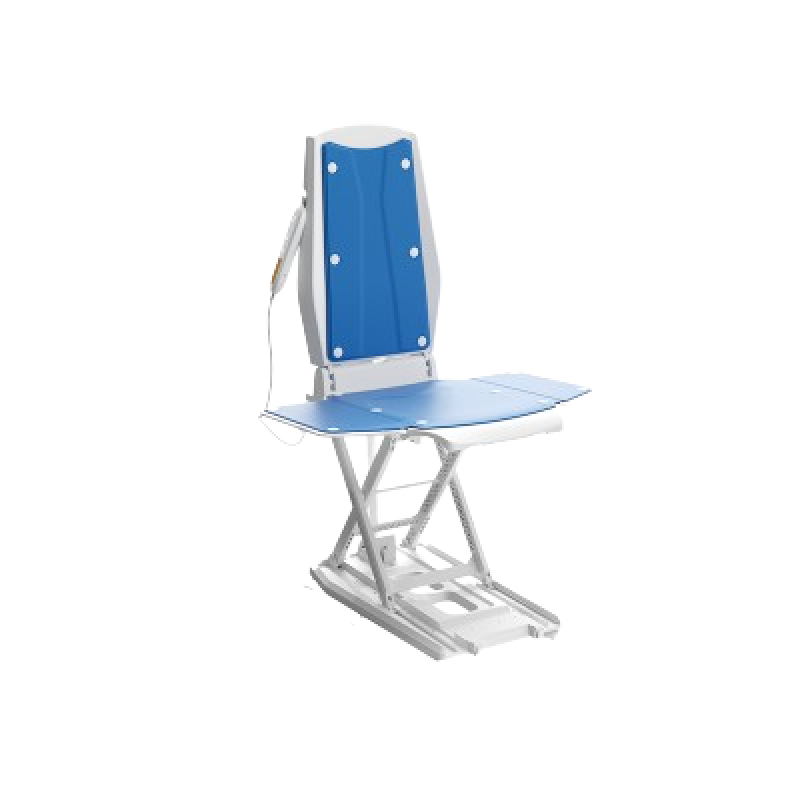

AX10 Multi-Functional Bathtub Lift Chair

Engineered for comfort, safety, and ease of use, this electric bath lift is the ideal solution for individuals who need assistance entering or exiting the tub. With a secure suction base, waterproof construction, and powerful lifting system, it promotes independence while easing caregiver strain.

Features:

High Weight Capacity

• Supports users up to 308 lbs (140 kg)
• Designed for stability and safety across a wide user range

Fully Waterproof Design

• IP68-certified, offering complete waterproof protection for safe, worry-free bath time use

Secure, Slip-Free Installation

• Equipped with 6 heavy-duty suction cups for firm grip on tub floors
• Each suction cup is 3.9″ in diameter and replaceable for long-term use

Adjustable Height Range

• Minimum Seat Height: 3.1″ ± 0.2″
• Maximum Lift Height: 19.7″ ± 0.2″
• Easily accommodates standard and deep tubs with a full lifting range of 16.6 inches

Efficient Battery & Charging System

• 14.8V / 2.2Ah lithium-ion battery
• Charges in just 2.5 hours with 100–240V AC compatibility (ideal for international use)
• Delivers up to 10 lifts or 2.5 hours of runtime per full charge
• Rated Lifting Force: 1400N for steady, quiet, and smooth lifting

Compact, Space-Saving Dimensions

• Overall Product Size: 28″ × 16.9″ × 8.7″
• Seat height adjusts from 3.1″ to 19.7″ for flexible use in most bathtubs

What’s in the Box?

• Hand Controller
  Battery Charger
• Back Plate (with Linear Drive & Back Pad)
• Base Seat (with 6 Suction Cups)
• Carpet Foot Pads
• Instruction Manual

Specifications:

Frequently Asked Questions:

Is the seat height adjustable?

Yes. The VOCIC Bath Chair Lift features a fully adjustable seat and backrest with a height range of 23.75″ to 40.5″, allowing users to customize the position for maximum comfort and optimal bath access.

What is the weight and weight capacity of the chair?

This lift weighs just 30 lbs, making it lightweight enough for easy handling. Despite its portability, it supports users up to 300 lbs, ensuring strong, stable support for a wide range of individuals.

How long does the battery last after charging?

Powered by a 14.8V / 2.2Ah lithium battery, the chair can perform approximately 10 full lift cycles per charge under standard usage conditions. The fast-charging battery is also equipped with overcharge protection to preserve battery health.

Is the remote control waterproof?

The handheld remote is water-resistant and safe for use during bathing. While it can handle splashes and light moisture, avoid full submersion to prolong its lifespan and ensure consistent performance.

What are the main functions of the VOCIC Bath Chair Lift?

• Bath Access Assistance: Designed to support seniors, post-surgery patients, or those with limited mobility by making independent bathing safer and more comfortable.
• Floor Recovery Aid: In the event of a fall, the chair can also function as a floor lift, helping users safely rise from the ground to a seated or standing position—an invaluable feature in home care environments.
