AY02 Electric Transfer Hoyer lift

Designed to reduce physical strain on caregivers and enhance patient safety, this electric full-body lift offers powerful performance for daily transfers in both home and clinical settings.

Features:

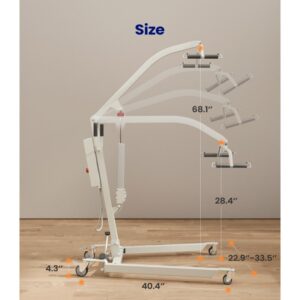

Wide Lifting Range for Versatile Transfers: The adjustable lift arm extends from 28.4″ to 68.1″, making it ideal for a variety of scenarios—bed-to-chair, wheelchair transfers, toilet access, and more.

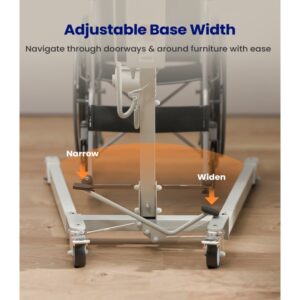

Expandable Base for Enhanced Stability: The base width easily adjusts from 22.9″ to 33.5″, offering sturdy support in both compact and open spaces. Perfect for navigating around furniture or hospital beds.

Low-Clearance Design for Under-Bed Access: With a 4.3″ base height, the lift slides smoothly under most beds, recliners, and sofas for efficient and hassle-free positioning.

Heavy-Duty Steel Construction: Crafted from reinforced high-strength steel, this lift delivers long-term durability. Paired with a strong, supportive sling for safe, everyday use.

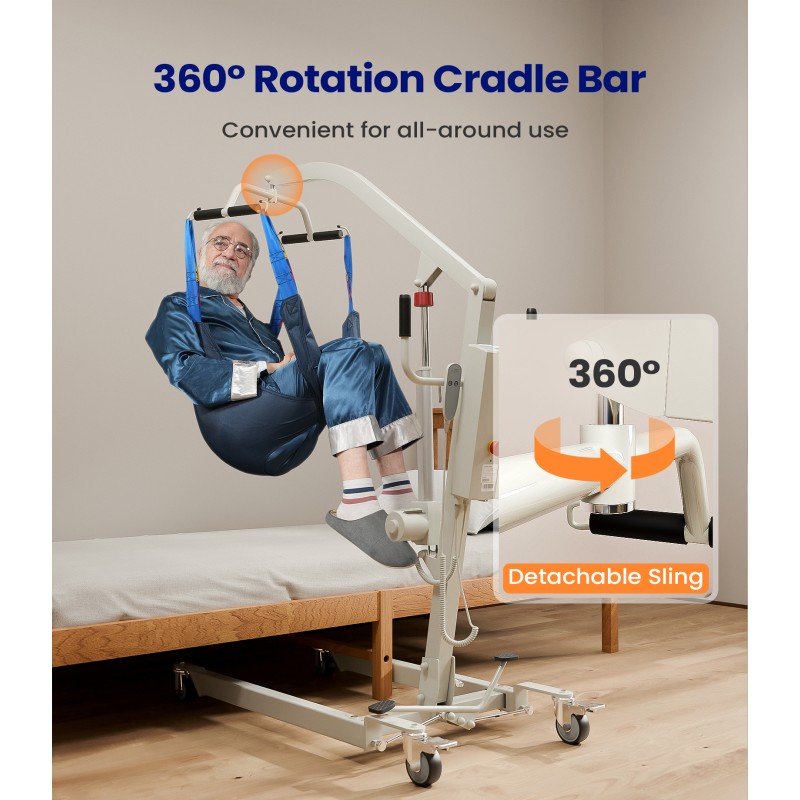

360° Rotating Sling Arm for Flexible Transfers: The sling arm rotates a full 360 degrees, allowing precise positioning and smoother, more comfortable transitions for the patient.

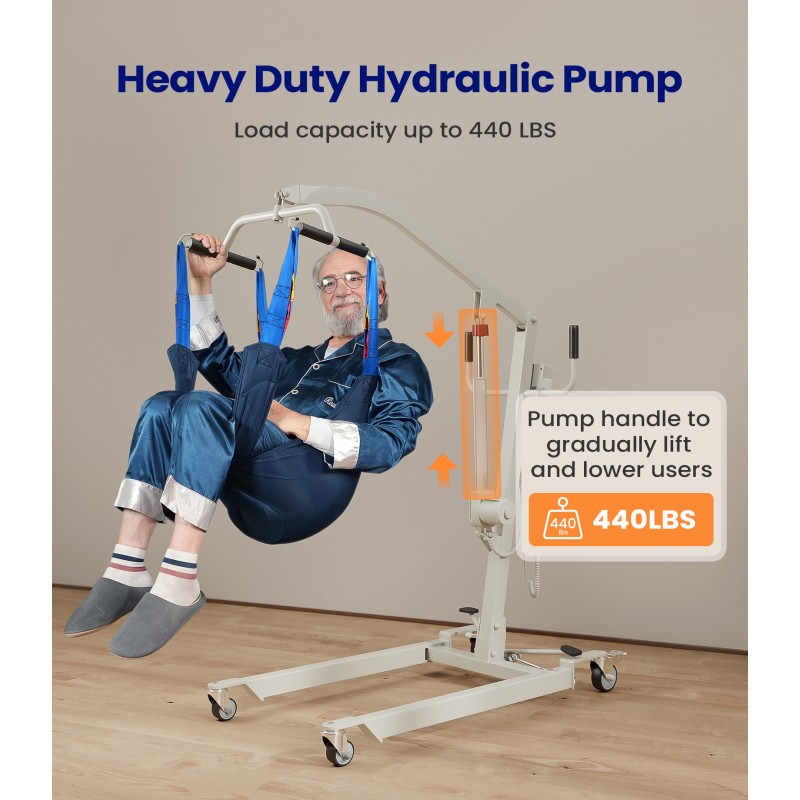

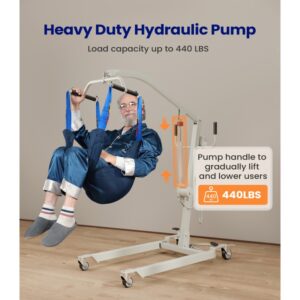

High Weight Capacity: Supports users up to 440 lbs, ensuring reliable operation for a wide range of patient needs.

What’s in the Box:

• 1× Patient Lift Frame
• 1× Main Electric Actuator
• 1× Control Box
• 1× Handheld Remote Controller
• 1× Power Adapter
• 1× Spreader Bar
• 2× Assembly Wrenches
• 1× Instruction Manual

Specifications:

Frequently Asked Questions:

How do I activate the AY02 Transfer Lift?

To ensure safe and correct activation, follow these steps:

• Fully charge the control box.
  Note: The lift will not operate while plugged in.
• Mount the control box securely onto the mast’s mounting plate.
• Install the limit screw using the included Allen wrench.
• Connect the motor cable to the second port from the left on the control box.
• Disengage the emergency stop by pulling it out and turning it clockwise.
• Press the UP or DOWN button on the control box to activate the lift.

What types of transfers is the AY02 Lift designed for? Is it just for wheelchairs?

Not at all—this lift is built for versatile, short-distance transfers. Common use cases include:

• Bed to wheelchair
• Wheelchair to sofa or recliner
• Shower chair to bathtub lift
• Toilet and bedside commode transfers

The adjustable base width (foot-pedal operated), 360° rotating sling hooks, and breathable U-shaped slings make the AY02 ideal for home care, rehab centers, and assisted living environments.

How long does it take to charge, and how long does a charge last?

• Charging Time: ~6 to 8 hours
• Lift Cycles Per Charge: ~18 to 21 full lifts (varies by user weight and lift range)
• Safety Feature: Built-in overcharge protection preserves battery health and safety.
